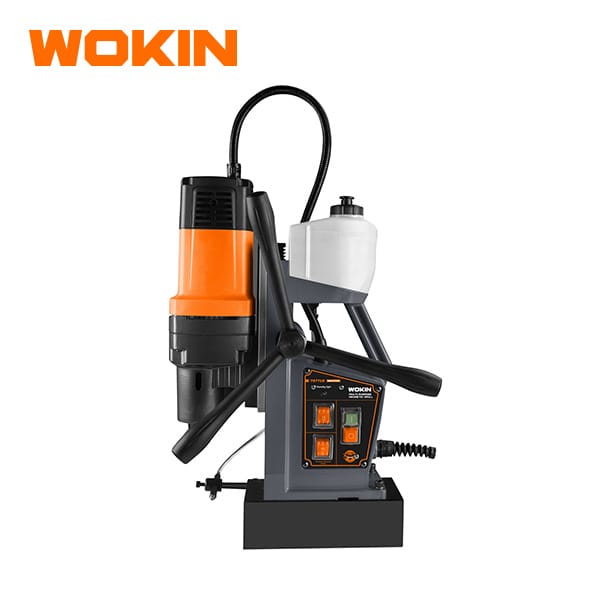

Rear view of the WOKIN 1800W multi-purpose magnetic drill featuring a high-capacity coolant tank and heavy-duty magnetic base.

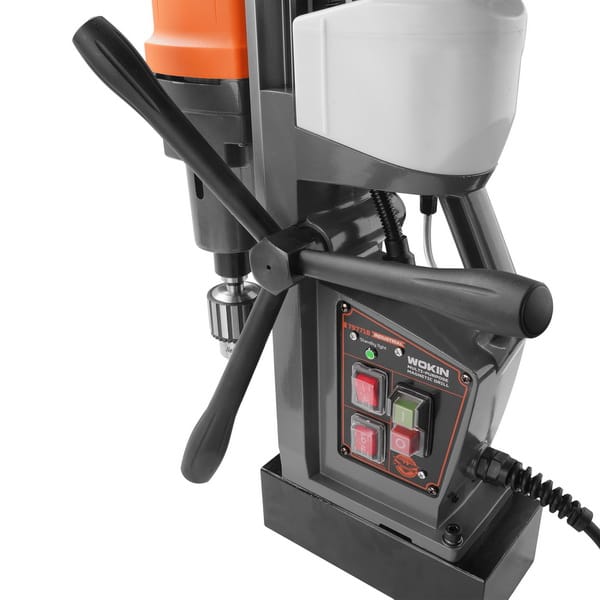

Control panel of WOKIN model 797718 magnetic drill featuring separate switches for magnet activation and motor power.

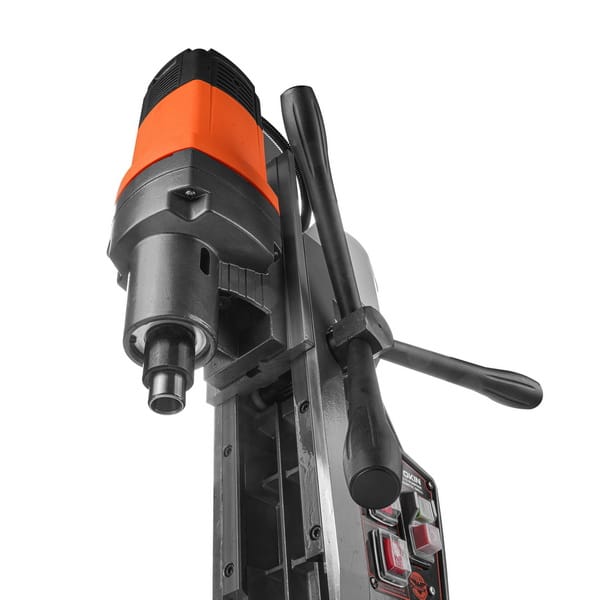

Close-up detail of the powerful motor head and spindle interface on the WOKIN industrial magnetic drill.

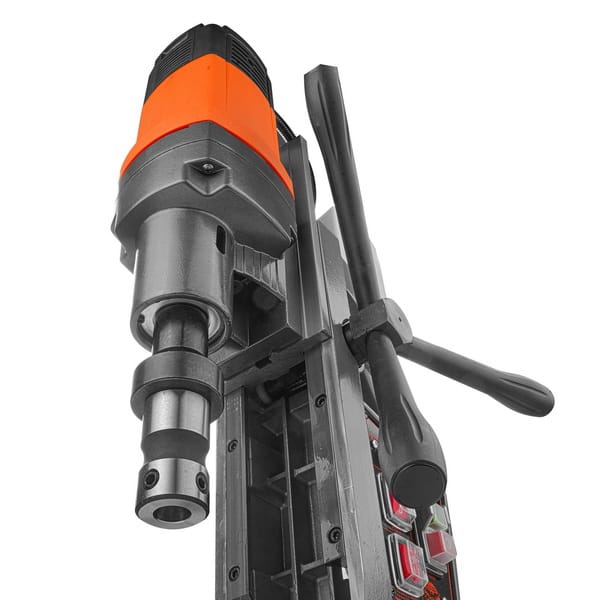

Side view highlighting the ergonomic feed handle and robust structural design of the WOKIN multi-purpose magnetic drill.

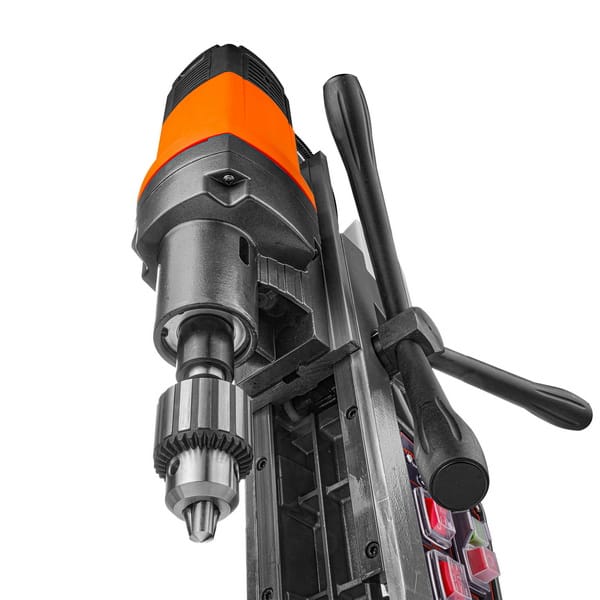

WOKIN magnetic drill fitted with a standard keyed drill chuck attachment for twist drill bits.

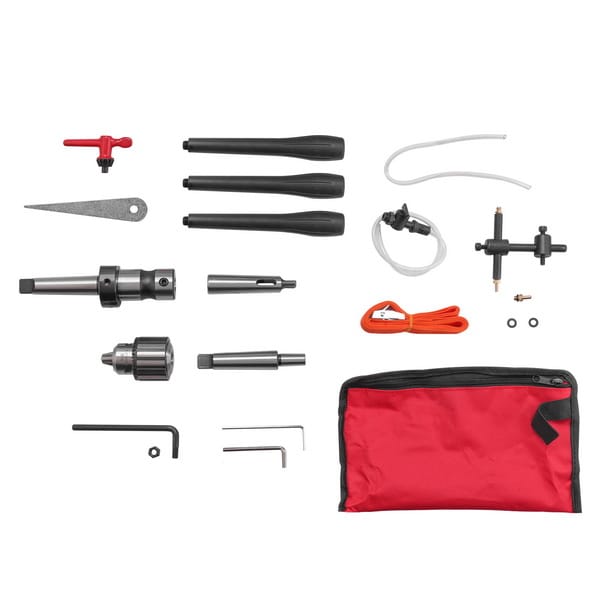

Complete accessory kit for WOKIN magnetic drill including pilot pins, drift key, chuck key, safety strap, and coolant system parts.

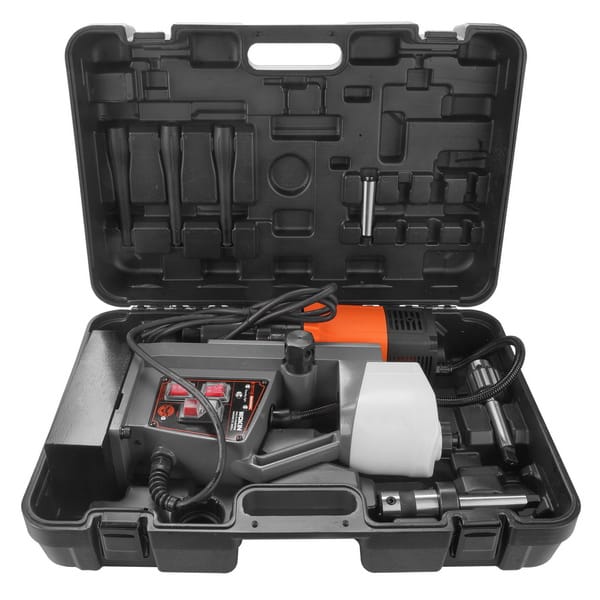

Internal view of the hard storage case with the WOKIN 1800W magnetic drill and accessories securely organized.

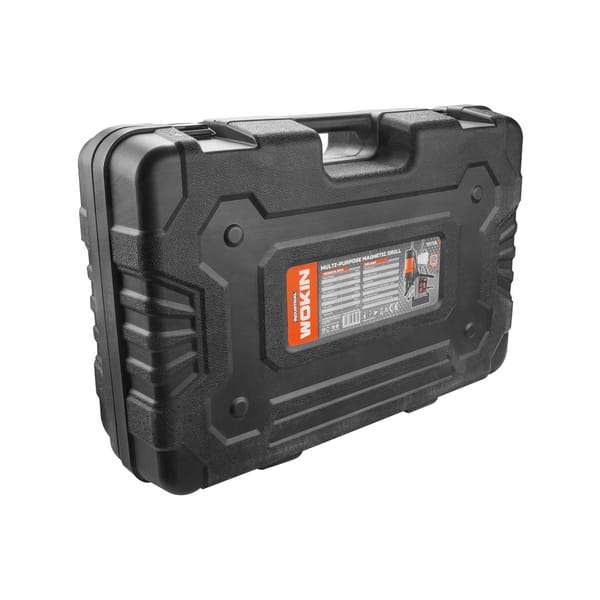

Exterior view of the heavy-duty blow mold carrying case for the WOKIN multi-purpose magnetic drill.

1800W MULTI-PURPOSE MAGNETIC DRILL

> Rated Voltage: 220-230v
> Rated Frequency: 50/60Hz
> Rated power: 1800W
> No-load speed: 200-600r/min
> Max. twist drill: 32mm
> Cutter range:12-60mm
> Max.cutter depth: 50mm
> Tapping range: M20-M27
> Max.stroke: 190mm
> Max.attraction: 17000N
> Spindle type:MT3
> Power compensation
> Forward and reverse rotation
> Electromagnetic switch
> Accessories contain:
> 1pc safety belt
> 1pair carbon brush
> 1pc φ3hex wrench
> 1pc φ5hex wrench
> 3pcs handles
> 1pc 500ml coolant tank
> 1pc external device for water injection cooling
> 1pc eject pin
> 1pc 1pc core connecting rod
> 1pc MT3 core drill adaptor
> 1pc MT3 chuck rod and drill chuck with key
> Packing: blow case and color box

STOCK NO.POWERQTY./CARTON
7977181800W1
SKU: 797718 Category:
Attachment

797718-Parts List

Download
