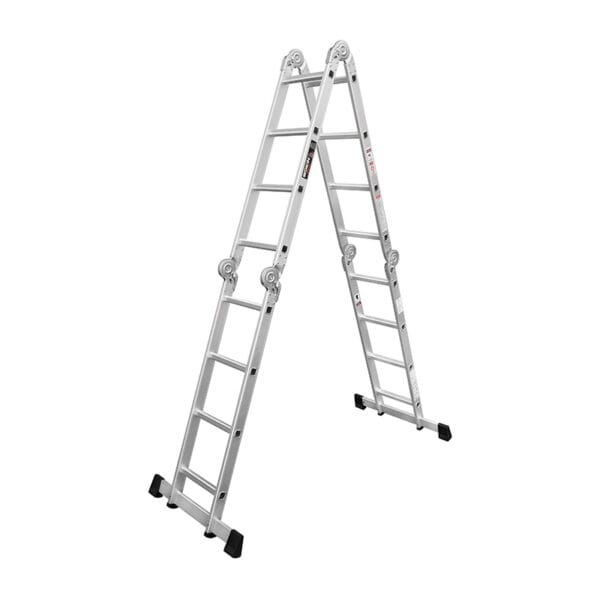

Wokin multi-purpose aluminum ladder in A-frame stepladder position

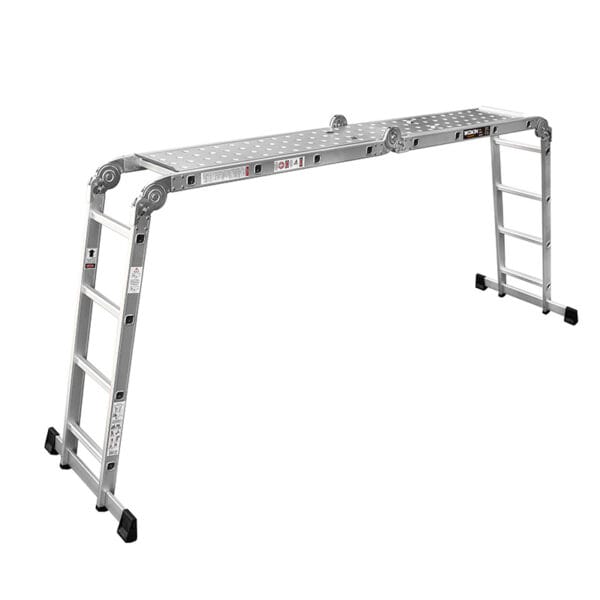

Wokin multi-purpose aluminum ladder in scaffold position with platform

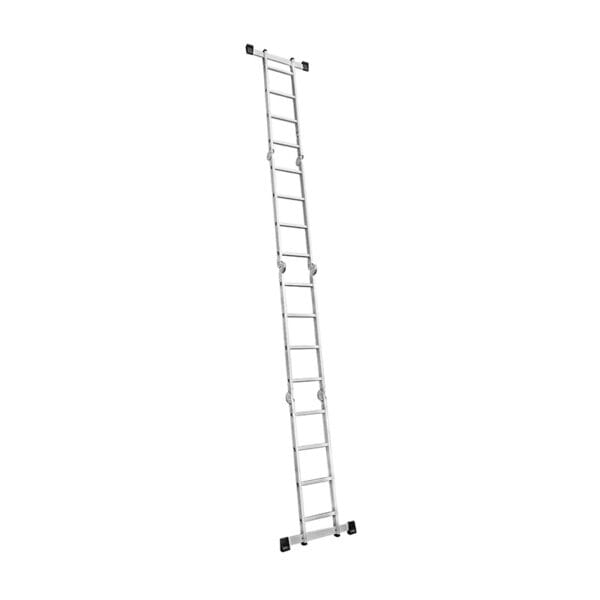

Wokin multi-purpose aluminum ladder in straight extended ladder position

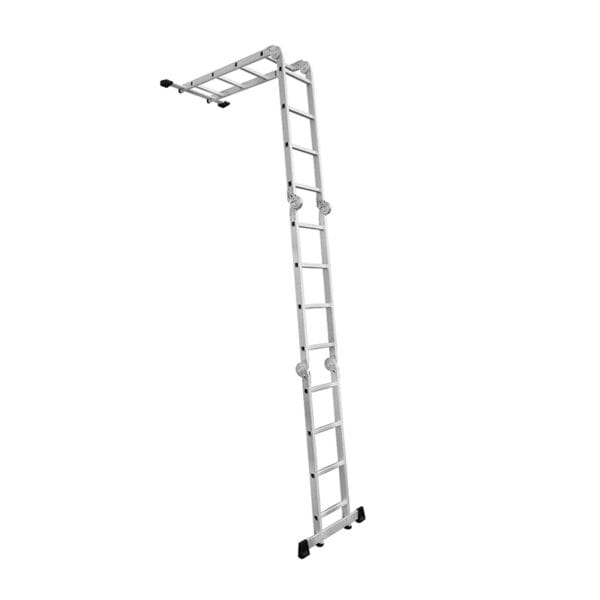

Wokin multi-purpose aluminum ladder in offset or staircase position

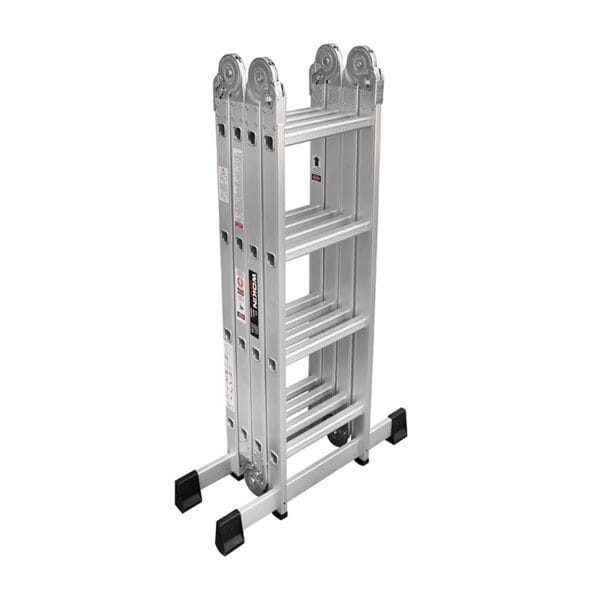

Wokin multi-purpose aluminum ladder in folded compact position

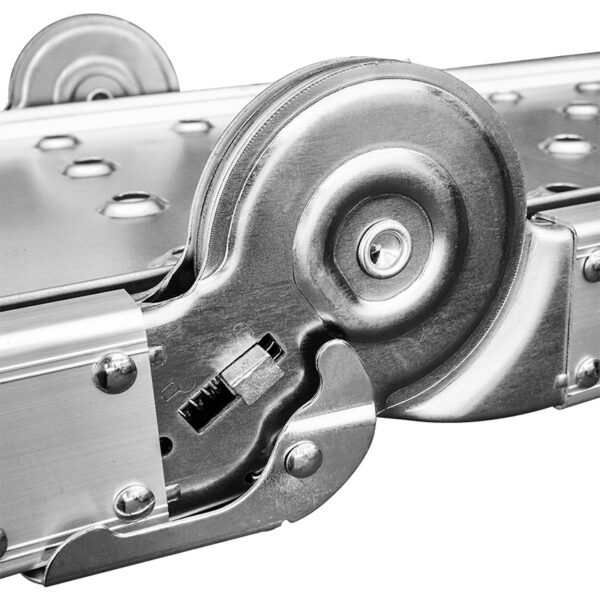

Close-up of the hinge and locking mechanism on a Wokin multi-purpose aluminum ladder

MULTI-PURPOSE ALUMINUM LADDER (INDUSTRIAL)

> CE approval, safety standard: EN131
> Material: Aluminium
> A Height: 170cm(682643), 225cm(682644), 278cm(682645)
> Step Height: 28cm
> N.W: 11.5kgs(682643), 13.3kgs(682644), 14.8kgs(682645)
> With 2pcs Scaffold Plate
> Max Load: 150KG
> Packing: shrink with color sleeve

STOCK NO.	SIZE	EXTENSION LENGTH	STEP HEIGHT	SCAFFOLDING HEIGHT	QTY./CARTON
682643	4×3 steps	346cm	28cm	96cm	1
682644	4×4 steps	460cm	28cm	123cm	1
682645	4×5 steps	570cm	28cm	151cm	1
