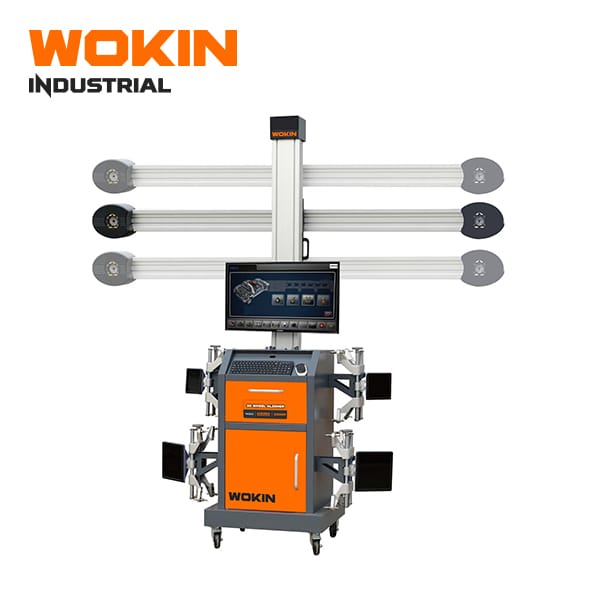

3D WHEEL ALIGNER (INDUSTRIAL)

> Multi-station moveable type intelligent synchronous tracking
> Measuring parameter: Intelligent Auto Lifting
> Display accuracy: Range -, Accuracy 1/0.01°/0.1mm
> Camber: Range ± 10°, Accuracy ± 2′
> Caster: Range ± 20°, Accuracy ± 5′
> K.P.I.: Range ± 20°, Accuracy ± 5′
> Toe-in: Range ± 40°, Accuracy ± 1′
> Set back: Range ± 5°, Accuracy ± 2′
> Thrust angle: Range ± 5°, Accuracy ± 2′
> Thread: Range 2,000mm, Accuracy ± 2mm
> Wheelbase: Range 4,000mm, Accuracy ± 2mm
> Aluminum beam with 2HD cameras
> Automatic tracking target measurement system
> Moveable cabinet with aluminum columns
> Brand Industrial PC
> 32” Led monitor
> Shield target
> Clamp:12”-24”
> Brake pedal
> Steering wheel holder
> Wedge block
> Turntable
> A4 printer
> Packing: wooden case
